| System | |
|---|---|
| Processor | Support AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors & EPYC 4004 (Max 170W TDP) - AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors - AMD EPYC 4004 Processors |
| System Chipset | AMD B650 |
| LAN Chipset | GbE 1 & GbE 2: Intel I210AT LAN (Support Wake-on-LAN and PXE) 10GbE 3 & 10GbE 4: Broadcom BCM57412 LAN (Support PXE) |
| Audio Codec | Realtek ALC897-VA2-CG |
| System Memory | 4x 288-pin DDR5 5200 UDIMM. Max. up to 192GB (Non-ECC) |
| Graphics | AMD Radeon Graphics |
| BIOS | AMI UEFI 256MB SPI Flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 1x DisplayPort 1.4a Max Resolution: 4096×2304 @60Hz |
| HDMI | 1x HDMI 2.0 Max Resolution 4096 x 2304 @60Hz |
| Multiple Display | 2x Independent Displays |
| Storage | |
| M.2 M-Key | 2x M.2 M-Key (2280, PCIe x4) Support NVMe Storage (1x M.2 M-Key shared with PCIe #4 Slot) |
| SSD/HDD | 2x 2.5" Internal SATA SSD Drive Bays (15mm) Support RAID 0,1 |
| Expansion | |
| M.2 E-Key | 1x M.2 E-Key Type: 2230 (Support PCIe x1 + USB 2.0; Support CNVi) Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 |
| PCIe | PCIe Slot from Left to right: #1 Slot: PCIe x16 Physical Slot (x16 Lane or x8 Lane) #2 Slot: PCIe x4 Physical Slot (x1 Lane, Open End) #3 Slot: PCIe x16 Physical Slot (No Signal or x8 Lane) #4 Slot: PCIe x4 Physical Slot (x4 Lane, Open End, shared with M.2 M-Key Slot) |
| Card Dimension | N/A |

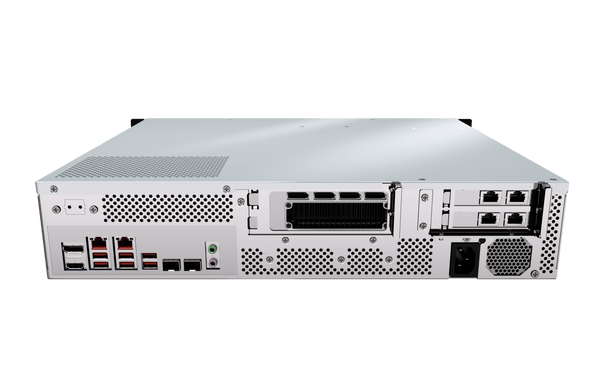

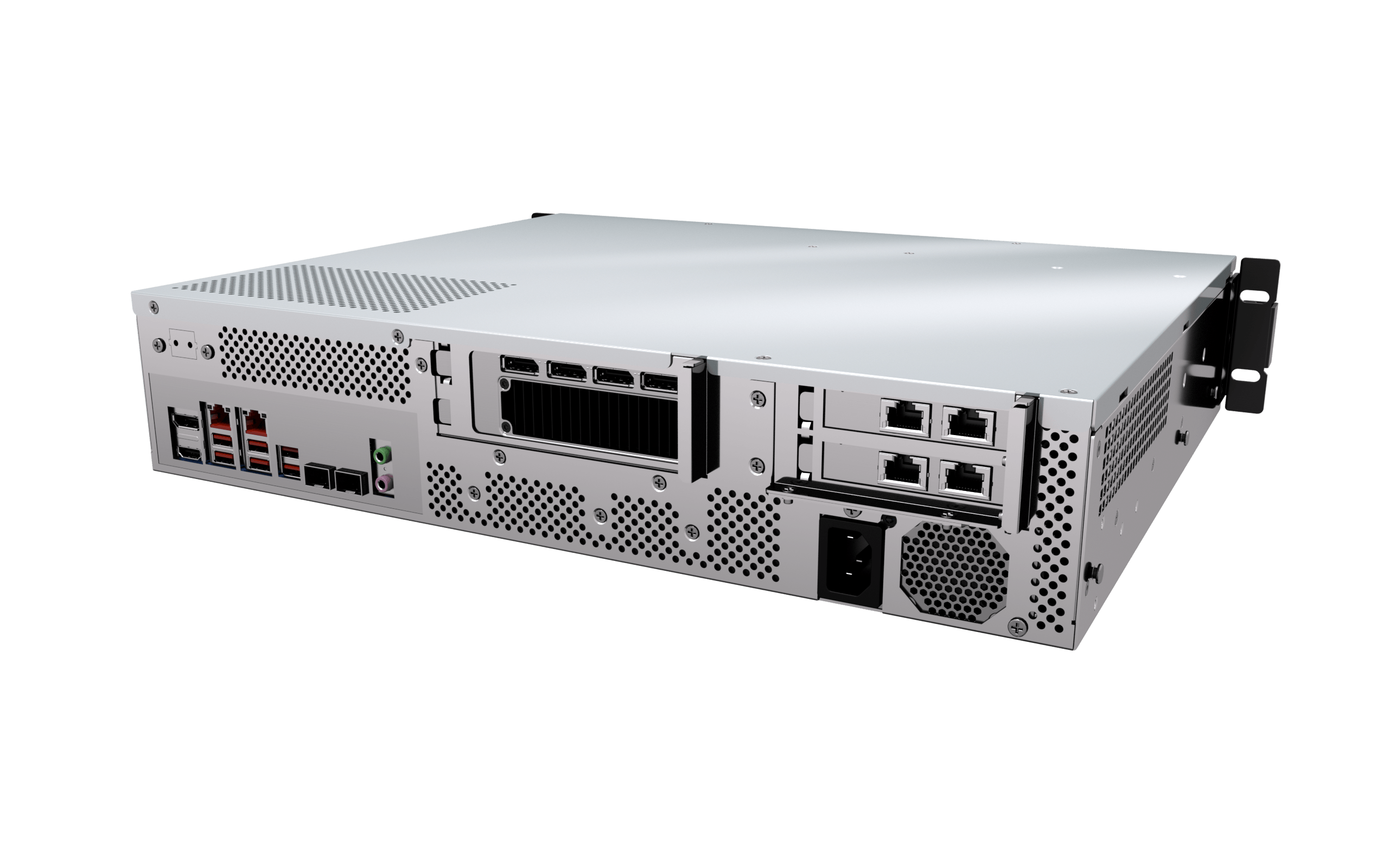

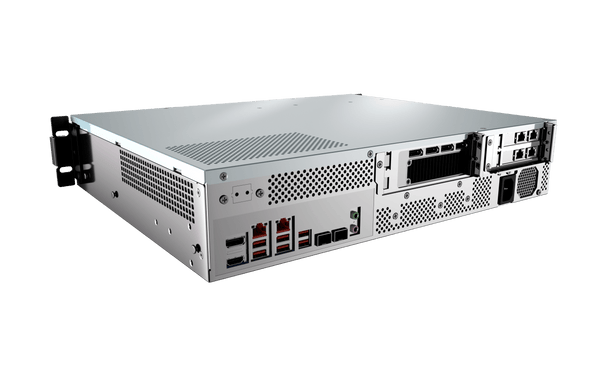

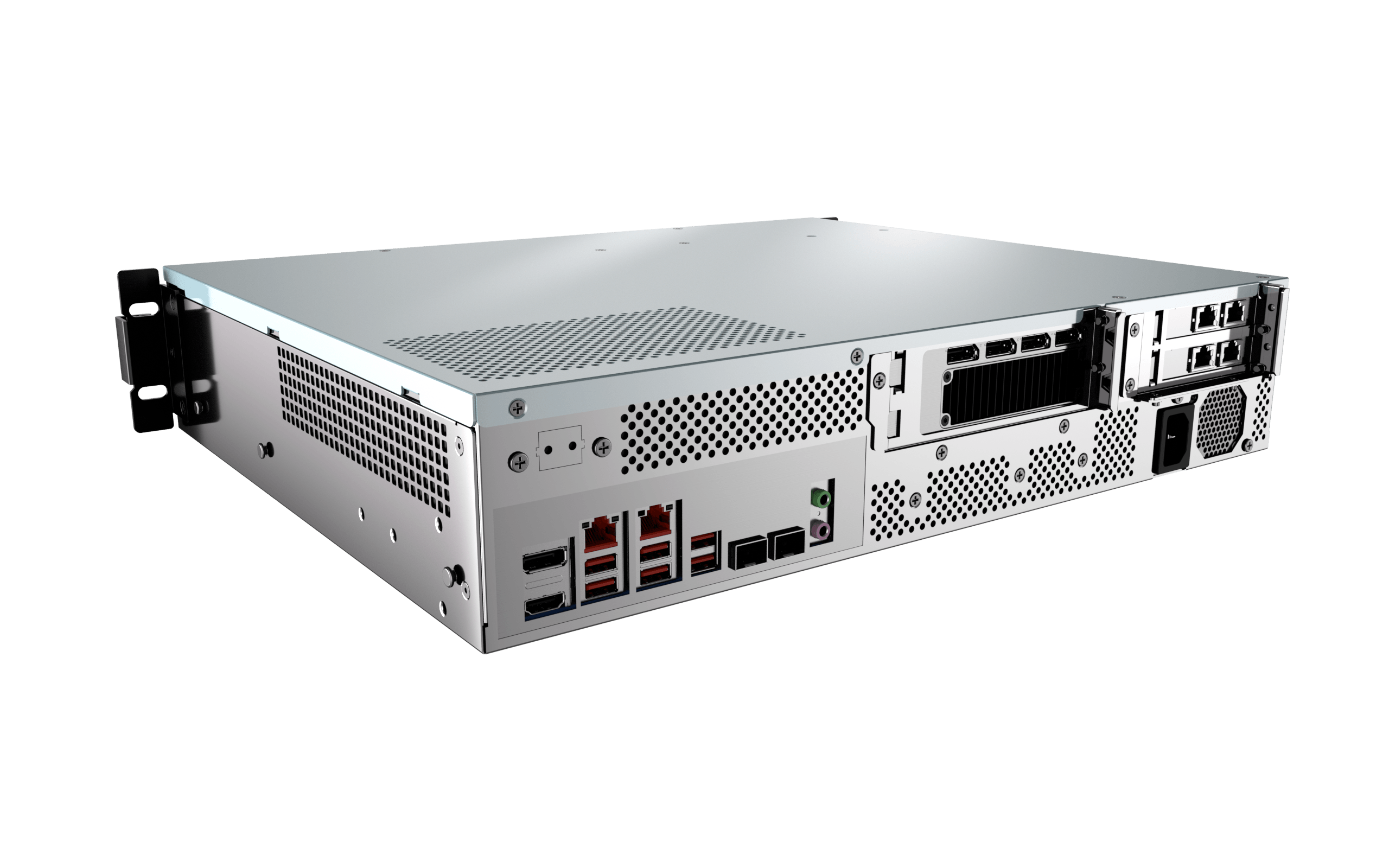

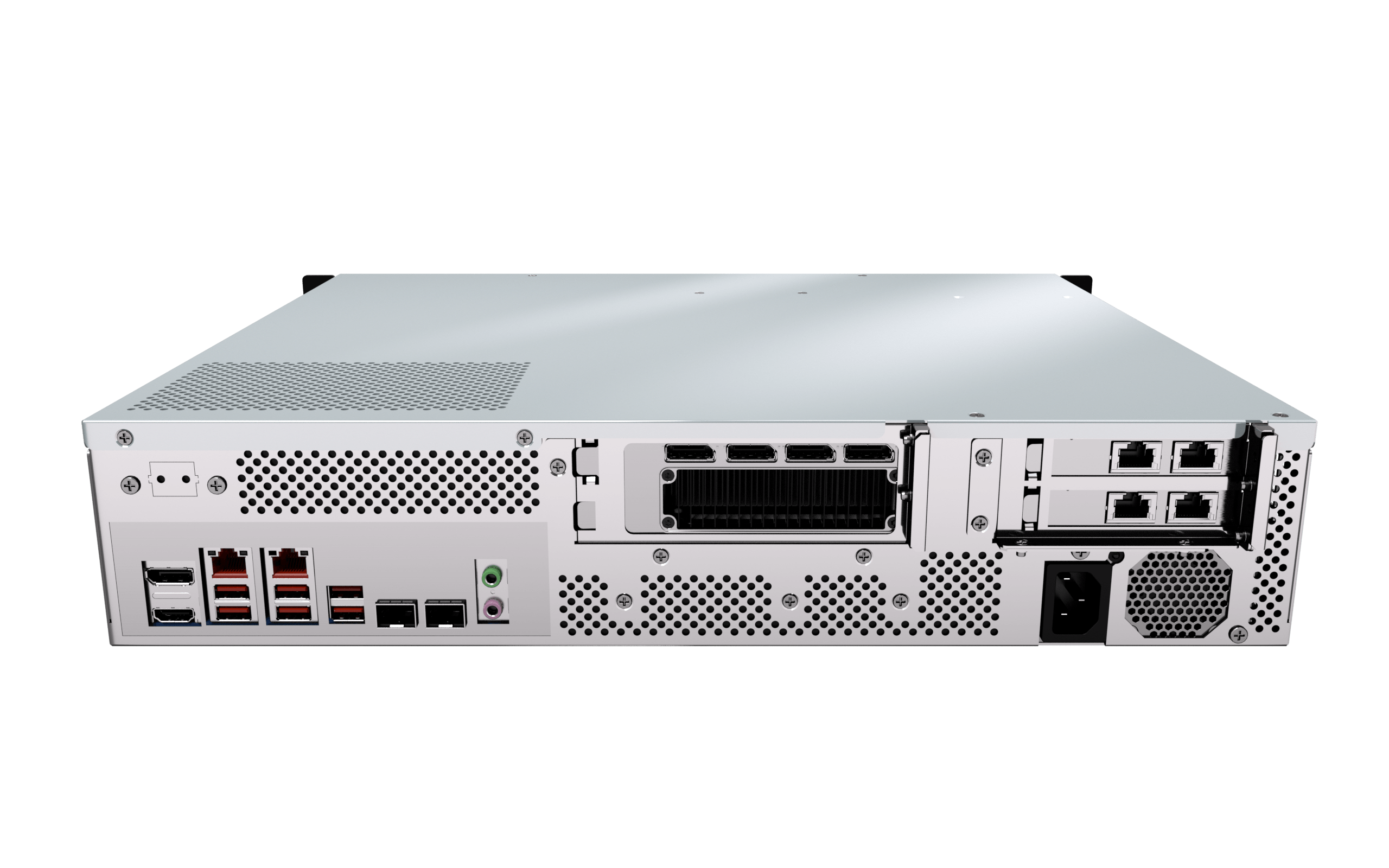

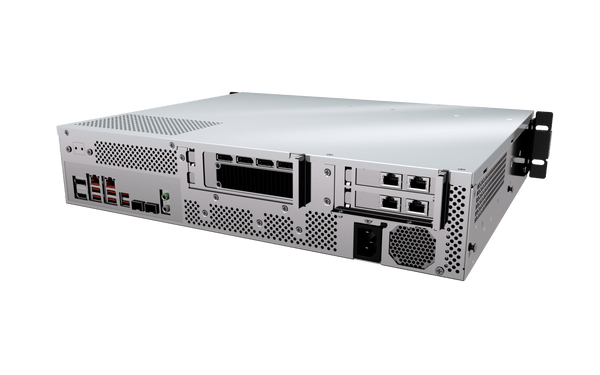

| I/O | |
| Audio | Line-out/Mic-in |
| LAN | 2x GbE RJ45 2x Broadcom 10GbE SFP+ |
| OOB | 1x RJ45 (Optional) |
| USB | 6x USB 3.2 Gen2 (Rear) 2x USB 2.0 (Front) |
| Others | 1x Power Switch with Blue LED 1x Recovery Button 1x Reset Button 1x CMOS Battery 1x Buzzer |
| Internal I/O | |
| USB | 2x USB 2.0 2x USB 3.2 Gen 1 |
| Operating System | |
| Windows | Windows 11 22H2 GAC (64-Bit) |
| Linux | Linux Kernel 5.x Ubuntu 22.04.4 LTS |
| Power | |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply | 1x 850W Single Power Supply AC: 115 to 230 V |
| Power Connector | IEC 60320 C14 |
| System Cooling | |

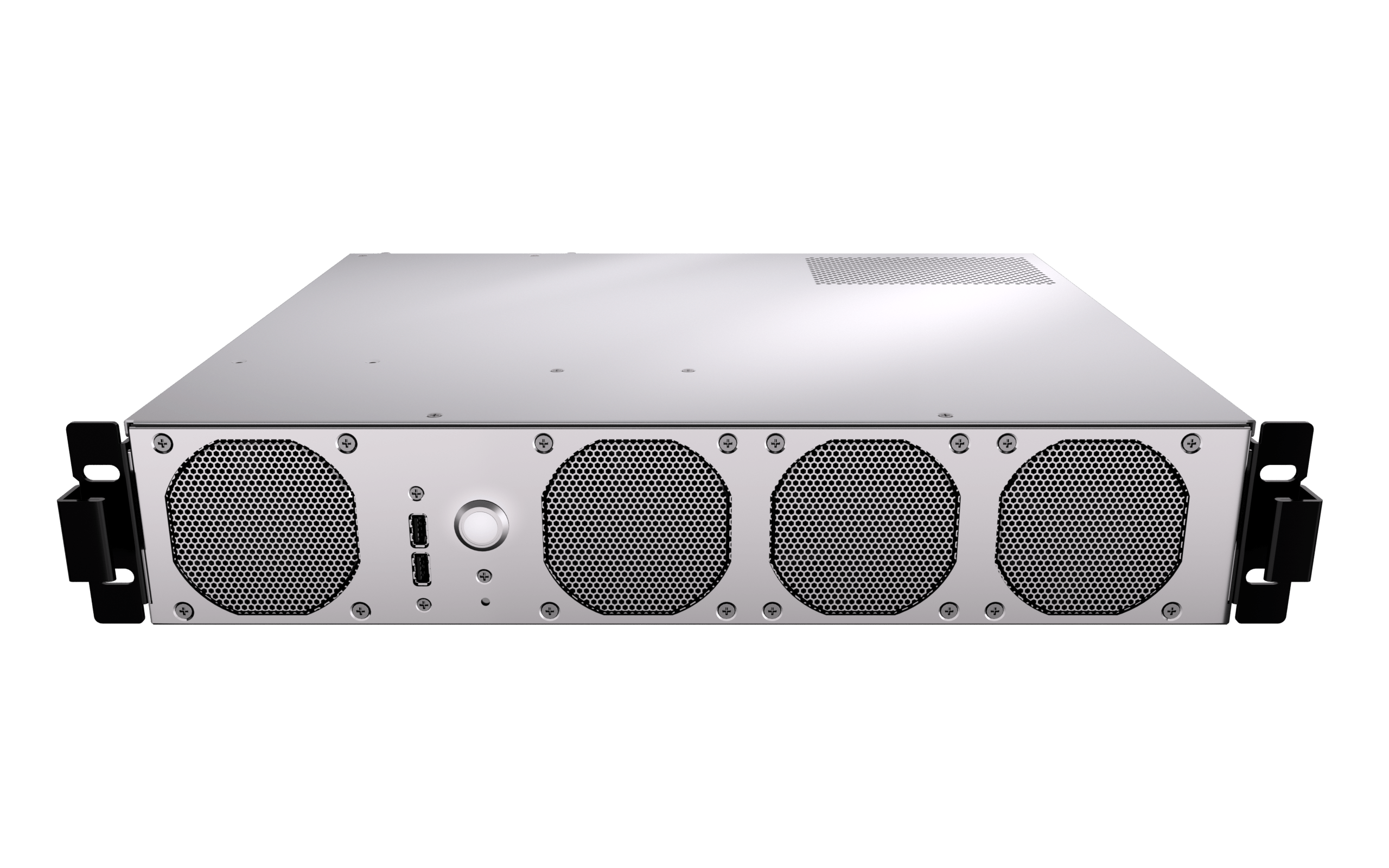

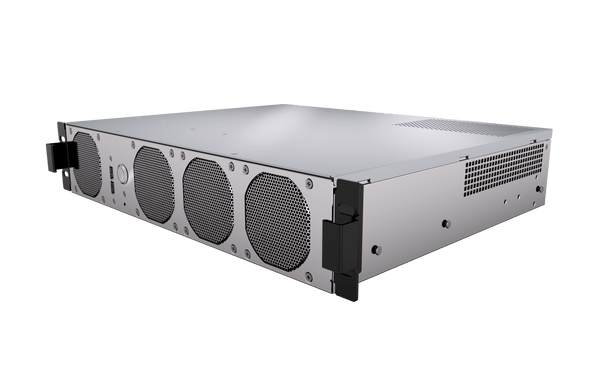

| Fan | 1x CPU Fan Cooler 4x Internal 8038 Fans |
| Environment | |
| Operating Temperature | 0°C to 35°C with 0.6 m/s airflow |
| Storage Temperature | -20°C to 80°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class B (pending) |
| Vibration | With SSD: 1 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: NA-G half-sin 11ms |
| Physical | |

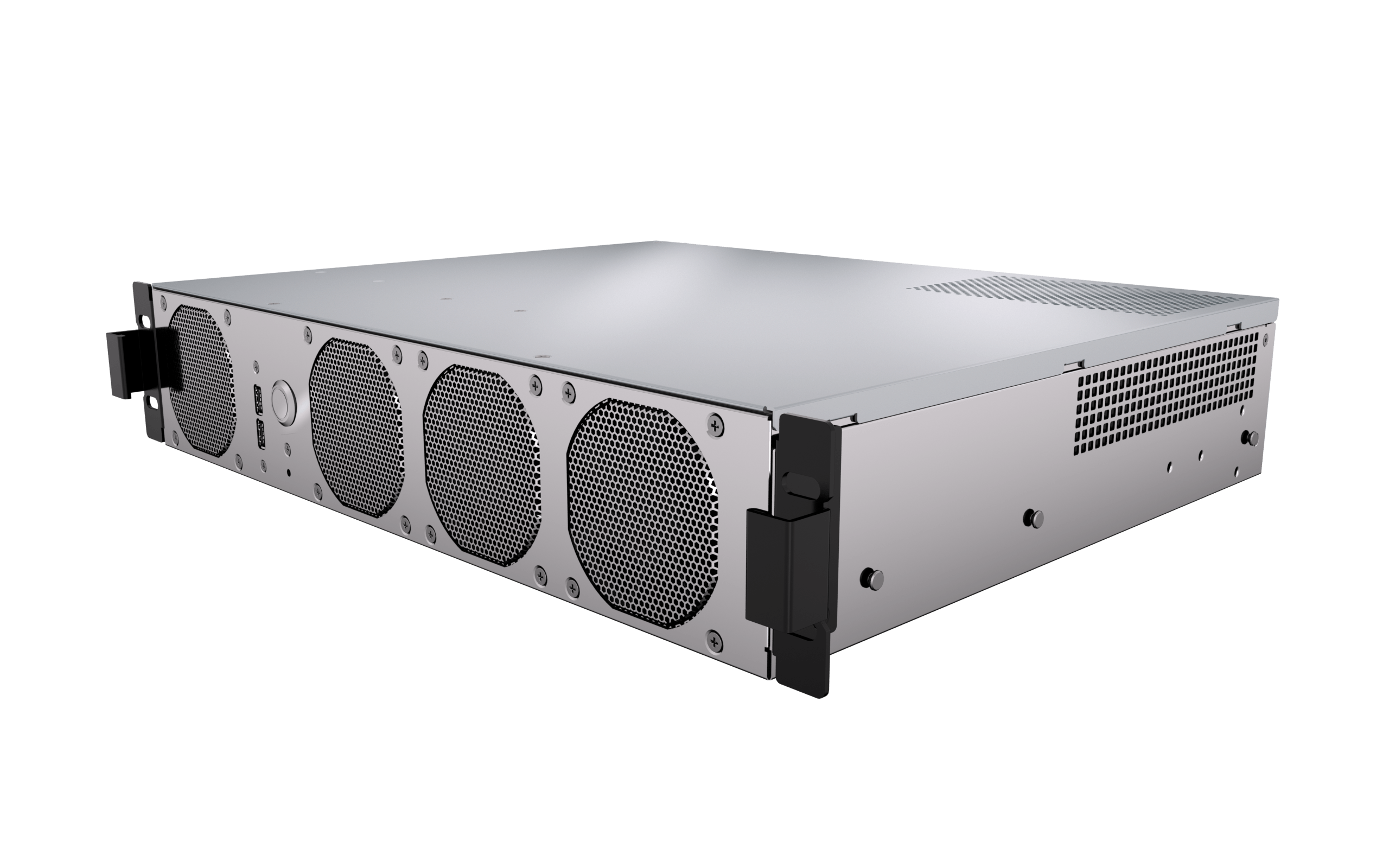

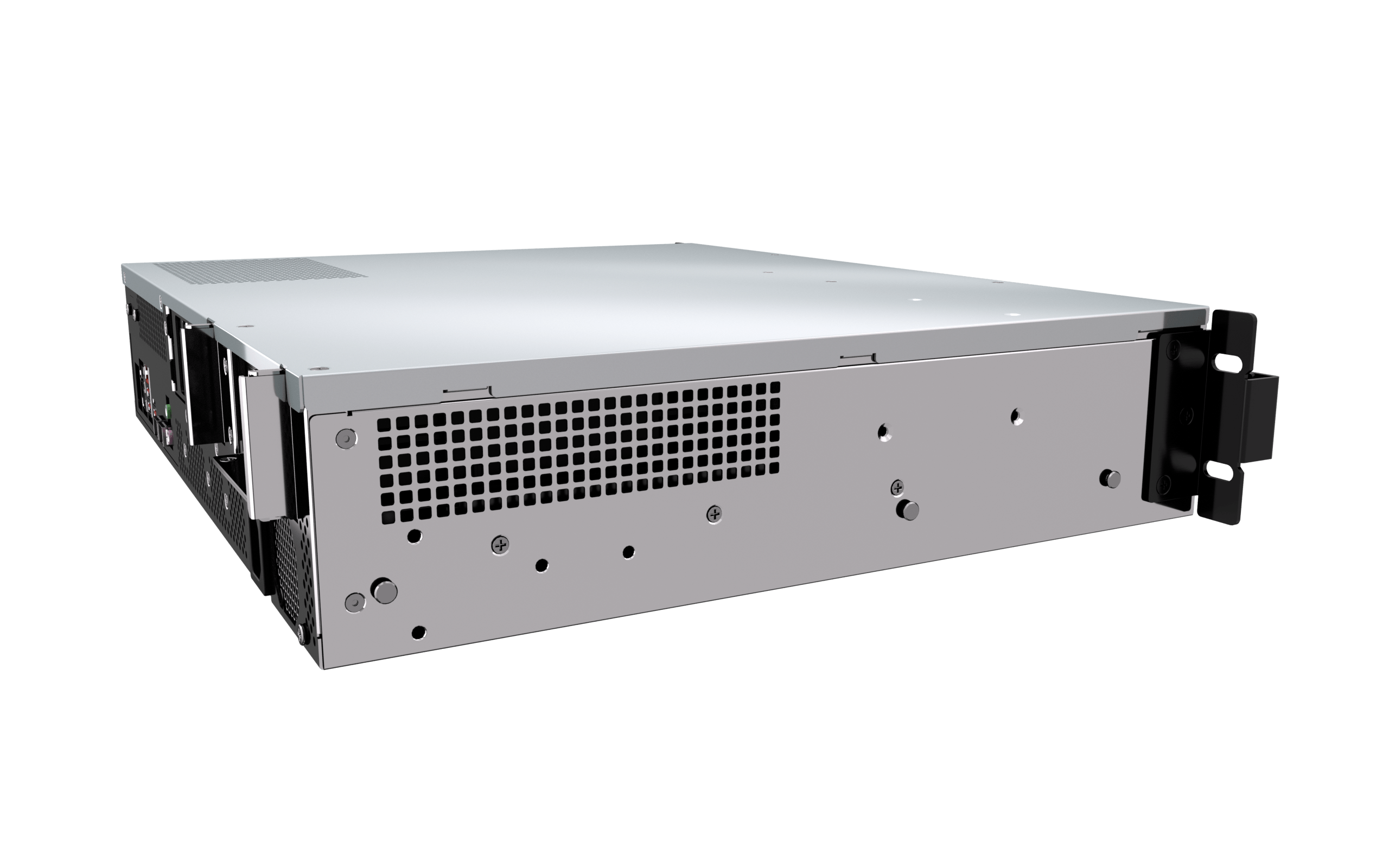

| Form Factor | 2U |
| Dimensions (WxDxH) | TBD |
| Weights | TBD |
| Construction | Heavy Duty Metal |
| Mounting Options | Rackmount |
| Datasheet |
DS_LLM-2U-AM5_Premio.pdf
|
